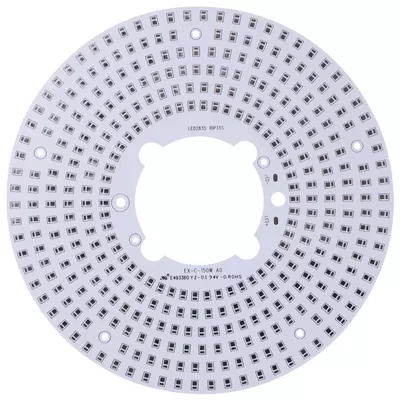

Aluminum PCB
Aluminum PCB consists of a dielectric metal base with a bonded copper circuit layer to create superior heat transfer to help cool components while eliminating problems associated with managing fragile ceramics.
More Information
|
Aluminum PCB Capability |
||
|
Aluminum PCB Feature |
Parameter (in) |
Parameter (mm) |
|
Layers |
1 – 6 |
1 – 6 |
|
Max Board Size |
24” x 40” |
609.6 x 1016mm |
|
Min Board Thickness – 1-2 (layers) |
16mil |
0.4mm |
|
Min Board Thickness – 4 (layers) |
20mil |
0.5mm |
|
Min Board Thickness – 6 (layers) |
24mil |
0.6mm |
|
Board Thickness Range |
16 – 157mil |
0.4 – 4mm |
|
Max Copper Thickness |
5oz |
175um |
|
Min Line Width / Space |
4mil / 4mil |
0.1 / 0.1mm |
|
Min Hole Size |
20mil |
0.5mm |
|
PTH Dia. Tolerance |
±2mil |
±0.05mm |
|
NPTH Dia. Tolerance |
±1mil |
±0.025mm |
|
Hole Position Deviation |
±4mil |
±0.1mm |
|
Outline Tolerance |
±4mil |
±0.1mm |
|
S/M Pitch |
3mil |
0.08mm |
|
Aspect Ratio |
6:01 |
6:01 |
|
Thermal Shock |
5 x 10Sec @288 |
5 x 10Sec @288 |
|
Warp & Twist |
<= 0.75% |
<= 0.75% |
|
Flammability |
94V-0 |
94V-0 |
