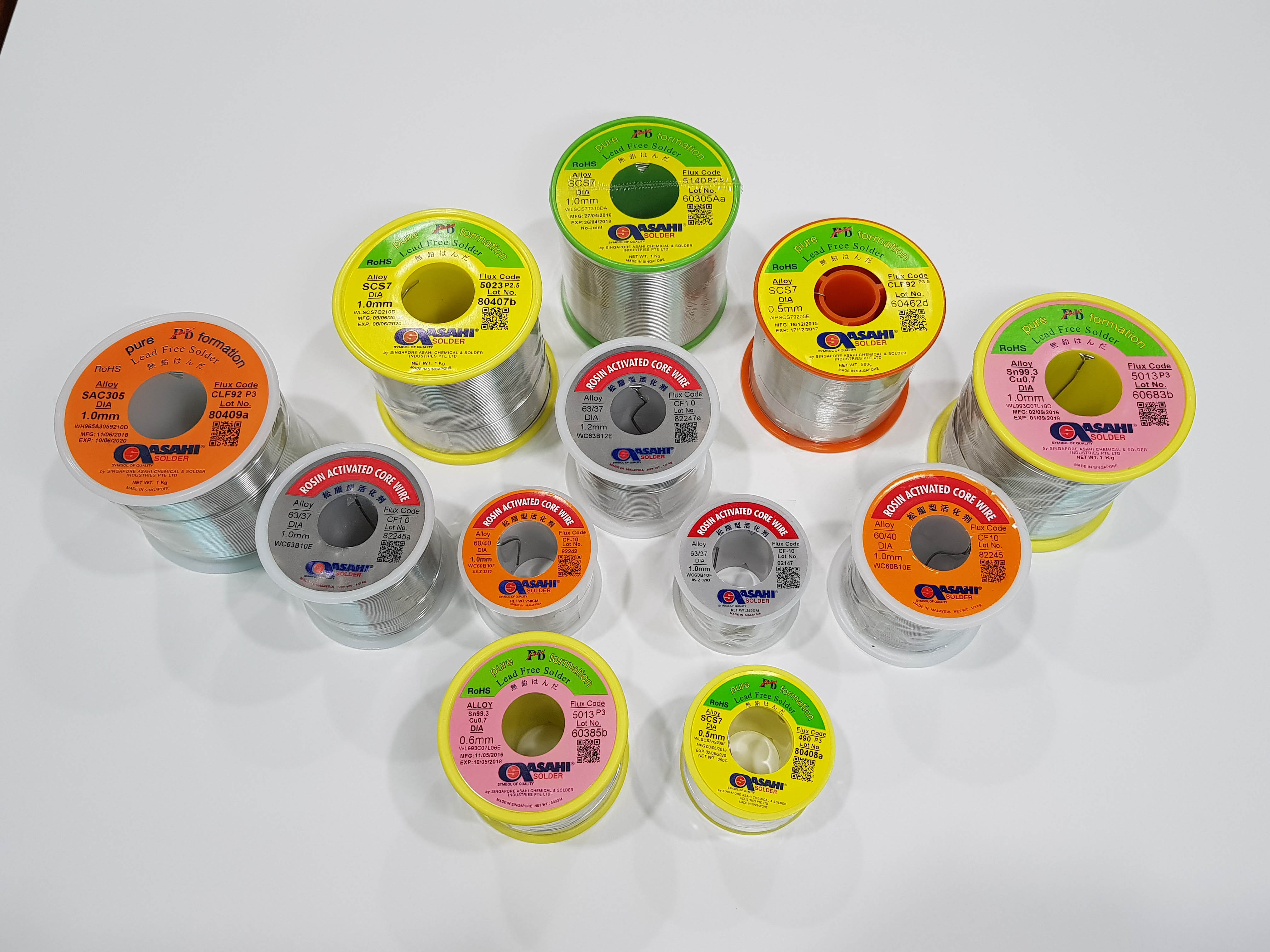

Lead Free Solder Core wire
A pioneer in development of unique, hassle free VIROMET and SCS alloys, Asahi has scaled another new height in alloy technology. These new series of alloys are now available in various forms for the application in wave soldering, SMT, manual soldering, micro-soldering etc.
More Information
|
HCLF491 is designed for normal and high temperature manual or auto soldering applications. The flux residue is light yellowish even at high temperature yet provides excellent wetting characteristic for reliable soldering. Properties Halide Content: Not Added Flux Activity Classification: ROL0 Residue Appearance: Light Yellowish Residue Removal: Not Required Available Alloys V347, V349, SAC305, SCS7, SnAg3.5, SnAg3.0, SnCu3.0 and SnCu0.7 Diameter (mm) 0.25 ~ 1.6mm, solid 2.0mm. |
|
HCLF 490 is designed for normal and high temperature soldering. Under high soldering temperature, the flux residue does not charr easily yet offers superior wetting characteristic. Properties Halide Content: Not Added Flux Activity Classification: ROM0 Residue Appearance: Light Yellowish Residue Removal: Not Required Available Alloys V347, V349, SAC305, SCS7, SnAg3.5, SnAg3.0, SnCu3.0 and SnCu0.7. Diameter (mm) 0.25mm~1.6mm, solid 2.0mm & 3.0mm |
|
CLF5160 is formulated using purest chemical which guarantees absolute flux core continuity and consistency in solder properties. Properties Halide Content: Not Added Flux Activity Classification: ROM0 Residue Appearance: Light Yellowish Residue Removal: Not Required Available Alloys V347, V349, SAC305, SCS7, SnAg3.5, SnAg3.0, SnCu3.0 and SnCu0.7. Diameter (mm) 0.25mm~1.6mm, solid 2.0mm & 3.0mm |
|
CLF5160 is formulated using purest chemical which guarantees absolute flux core continuity and consistency in solder properties. Properties Halide Content: Not Added Flux Activity Classification: ROM0 Residue Appearance: Light Yellowish Residue Removal: Not Required Available Alloys V347, V349, SAC305, SCS7, SnAg3.5, SnAg3.0, SnCu3.0 and SnCu0.7. Diameter (mm) 0.25mm~1.6mm, solid 2.0mm & 3.0mm |
|
CLF4128 is a highly activated water soluble core flux for soldering on difficult to solder surface finishes. It is easily cleaned along with minimal odor and smoke. Properties Halide Content:0.4 ± 0.1 wt% Flux Activity Classification: ROH1 Residue Appearance: Light Yellowish Residue Removal: Rinse with DI water at 40°C – 60°C Available Alloys V347, V349, SAC305, SCS7, SnAg3.5 and SnAg3.0. Diameter (mm) 0.25mm~1.6mm, solid 2.0mm & 3.0mm |
|
CLF4128 is a highly activated water soluble core flux for soldering on difficult to solder surface finishes. It is easily cleaned along with minimal odor and smoke. Properties Halide Content: 0.4 ± 0.1 wt% Flux Activity Classification: ROH1 Residue Appearance: Light Yellowish Residue Removal: Rinse with DI water at 40°C – 60°C Available Alloys V347, V349, SAC305, SCS7, SnAg3.5 and SnAg3.0. Diameter (mm) 0.25mm~1.6mm, solid 2.0mm & 3.0mm |
|
CLF92 lead free no clean core flux solder wire is formulated using purest raw chemicals together with halogen free materials, which guarantees absolute flux core continuity and consistency in solder properties. It provides excellent instant wetting action and superior solderability on a variety of surface finishes. Properties Halide Content: Not Detected Flux Activity Classification: ROM0 Residue Appearance: Light Yellowish Residue Removal: Not Required Available Alloys SAC305 & SCS7 Diameter (mm) 0.5mm~1.6mm and solid 2.0mm |
